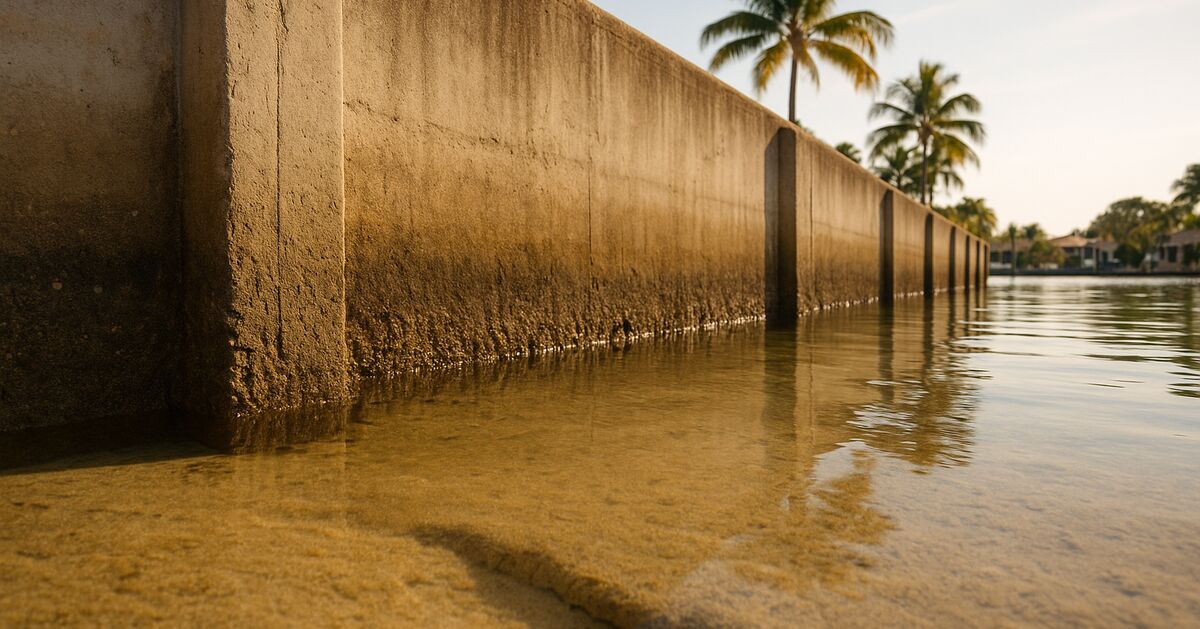

Beneath your seawall, right now, the tide is doing something you cannot see and probably haven't thought about: it is pulling soil out from under the concrete footer that holds your entire wall upright. The process is called tidal scour, and it is one of the quieter, slower ways a seawall can lose the fight against the water it was built to hold back.
This post is about understanding exactly what is happening down there, why Sarasota's particular mix of tides, boat wakes, and bottom sediments makes scour a real concern for local waterfront owners, and what the warning signs look like before a footer problem becomes a catastrophic failure.
Before getting into scour, it helps to know what the footer is supposed to do. A seawall panel, whether concrete or vinyl sheet pile, is the visible face of the wall. But the footer, sometimes called the toe or the base beam, is a horizontal concrete element that runs along the bottom of the panel. It is typically poured or pre-cast and sits on or in the bottom sediment.
The footer does several things at once. It distributes the lateral load from the soil behind the wall across the length of the panels rather than concentrating stress at any one point. It keeps the base of the panels from kicking outward under soil pressure. And, in many seawall designs, it anchors the bottom of the panels into a reasonably stable position so that tiebacks and deadman anchors can do their job higher up.
When the footer loses the soil that surrounds and supports it, it loses leverage. The base of the wall becomes free to move, and the geometry of the whole system starts to change in ways that are hard to reverse without significant reconstruction.
Scour is the technical word for erosion caused by moving water. In rivers and streams, scour happens around bridge pilings and culverts. At the coast and in tidal canals, it happens at the base of seawalls.
Here is the basic mechanism. Every tidal cycle, water flows in and then flows out. As water recedes, it accelerates slightly as it funnels past the base of a seawall. That acceleration increases the water's ability to pick up and carry fine particles. Sand, silt, shell fragments, and organic material that were sitting against the bottom of your footer get lifted into the water column and carried away. The process repeats two to four times a day, every day, for years.
On its own, one tidal cycle removes very little material. But compound that over months and years, and the void beneath and in front of a footer can become significant. A footer that was once fully embedded in stable sediment can end up sitting on a thin shelf of compacted material with open water or loose slurry beneath it.
Boat wakes add to the problem. Wakes from passing vessels create surge events that hit the wall at angles the tidal current does not, disturbing sediment that a simple tidal ebb might not reach. This is particularly relevant on wider canals in areas like Sarasota's Intracoastal corridor, along the bay-facing lots on Longboat Key, and in the busy boat traffic channels near Siesta Key and Casey Key.
Sarasota County's tidal system has a few characteristics that combine to make scour a more active concern here than in some other parts of Florida.
Tidal variation in Sarasota Bay and the adjoining canals tends to be modest in amplitude, though flows are steady and predictable, according to NOAA tidal datum data for the region. That steady back-and-forth over a fine-grained, silty bottom means scour operates reliably rather than in occasional bursts.
Second, much of the bottom sediment in Sarasota's canals is fine-grained. Silts and fine sands are far more erodible than coarser material. The bottom of a back-bay canal in Nokomis or a finger canal in South Venice or Venice Island is not the coarse gravel bottom of a mountain stream. Fine material moves with relatively low current velocity.
Third, Sarasota's warm water supports extensive marine growth. Algae, barnacles, and biofilm on the face of a seawall create a rough surface. While that roughness does not cause scour directly, it changes the flow pattern of water along the wall face in ways that can direct more turbulent water toward the base.
Finally, storm surge events, even modest ones associated with a tropical system passing well offshore, can dramatically accelerate the scour process by sending fast-moving water across the bottom in directions that normal tidal flow does not. After a storm is exactly the right time to have your wall inspected, as we cover in detail in our broader discussion of seawall and dock repair services.
Scour damage does not announce itself with a loud event. It tends to proceed in stages, and each stage is harder to reverse than the one before it.
Stage one: early void formation. The footer is still in contact with sediment on most of its surface, but a shallow trough or depression has formed immediately in front of or beneath the toe of the wall. Water is pooling in this depression at low tide. Visually, you might notice a slight discoloration or a thin line of shadow at the very base of your seawall at a low spring tide.
Stage two: undermining. The void has grown. The footer is now unsupported across a portion of its length. Soil behind the wall has begun to flow slightly toward the void, sometimes showing up as small slumps or depressions in the ground at the top of the seawall cap. If you have a lawn or landscaping near the cap, watch for settling or soft spots. This is also when horizontal cracks in the face of the seawall panels may begin to appear, as the panel is now being asked to span across an unsupported section.
Stage three: rotation. With the footer undermined, the base of the wall begins to rotate or kick outward. The top of the wall may tilt slightly landward. Tiebacks, if present, are now under load they were not designed to carry without footer support. Cracking accelerates. The seawall cap may crack or separate from the panels.
Stage four: failure. At some point, the wall tips, slides, or collapses. This can happen gradually or suddenly after a storm event adds the final load. By this stage, reconstruction is typically required rather than repair.
Understanding how seawall panels respond differently depending on their location and construction type is something we cover in the post on why seawall panels crack differently on bay-side vs. canal-side lots in Sarasota County.
You cannot see your footer, but you can look for surface indicators that suggest scour is underway below.
A qualified inspector will do things that a surface walk-around simply cannot accomplish. Probing the sediment in front of and beneath the footer with a steel rod can reveal void zones that are invisible from above. Underwater inspection, either by diving or with a camera, can show the actual condition of the footer face, the extent of any void, and whether the panel bases have already begun to move.
Some contractors use water jetting or vacuum excavation to expose the footer and assess its condition more directly, particularly before deciding whether grouting or underpinning is appropriate.
This kind of professional assessment is especially valuable for older walls. Many seawalls in areas like Osprey, Nokomis, and Venice Island are older structures that may never have been thoroughly inspected at the footer level. If you are not sure what condition your wall is in, the frequently asked questions page is a good place to start before reaching out for an on-site evaluation.
Repair approach depends entirely on the stage of damage and the wall construction type.
Grouting and void filling. For stage-one and some stage-two situations, pressure grouting can be used to fill voids beneath the footer with a flowable grout mixture. The grout displaces water and loose slurry and hardens into a stable support. This is a less invasive option that can restore footer support without wall reconstruction.
Riprap and armoring. Placing clean crushed rock or riprap at the base of the wall reduces current velocity at the footer level and prevents further fine sediment from being mobilized. This is often used in combination with grouting as a long-term scour protection measure. Proper sizing of riprap material matters, since material that is too small can itself be mobilized by tidal currents.
Tieback reinforcement. If the footer undermining has allowed the panel base to move slightly, additional tiebacks installed higher in the panel can help redistribute the load while the footer area is being repaired. This is not a standalone fix but can stabilize a wall while other work is being done.
Reconstruction. Stage-three and stage-four damage generally means that the original footer is no longer serviceable. In those cases, the wall panels, footer, and cap typically need to be replaced. The choice of replacement material, whether concrete panels or vinyl sheet pile, involves trade-offs that depend on water exposure, lot orientation, and budget, topics covered in detail in the post on concrete seawall vs. vinyl sheet pile in Sarasota County.
A visual inspection at low tide, twice a year, is a reasonable baseline for most Sarasota waterfront properties. Add an inspection after any significant storm or after a period of unusually high boat traffic.
If you are buying a waterfront property in Sarasota, Longboat Key, Lido Key, Bird Key, or anywhere along the canals of Venice and South Venice, a seawall footer inspection should be part of your due diligence, not an afterthought. Scour damage that has reached stage two or three can cost significantly more to address than a problem caught at stage one.
Our team works throughout the Sarasota County waterfront, from the bay-facing lots in Sarasota and Siesta Key to the canal properties in Osprey and Nokomis. If you have noticed any of the warning signs described above, or if you simply have not had your seawall inspected in the last few years, reach out for a site visit. Looking at a wall that turns out to be fine is time well spent. Missing a footer problem that is quietly getting worse is far more expensive.

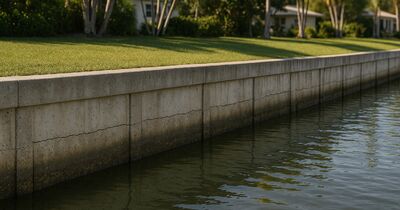

Bay-side and canal-side seawalls in Sarasota County take punishment from completely different forces. Understanding which type of cracking you're looking at tells you how urgent the repair really is.
